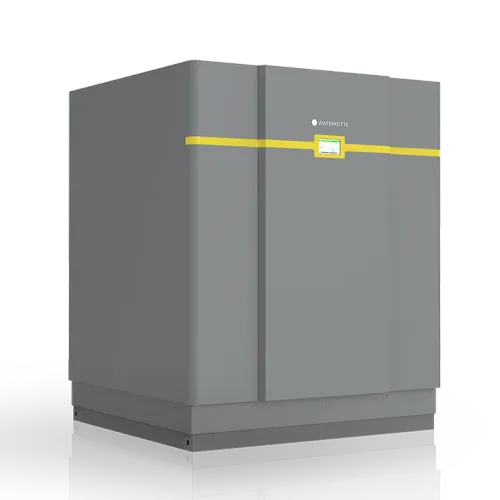

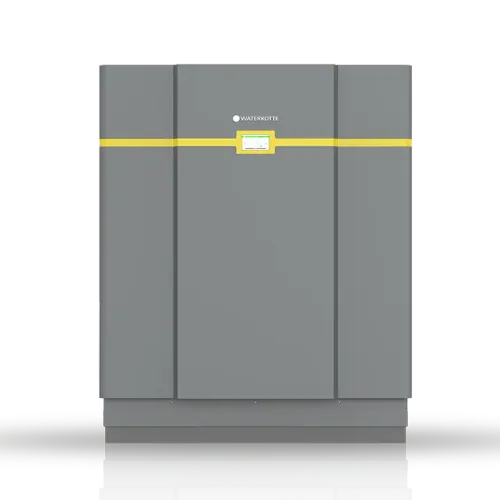

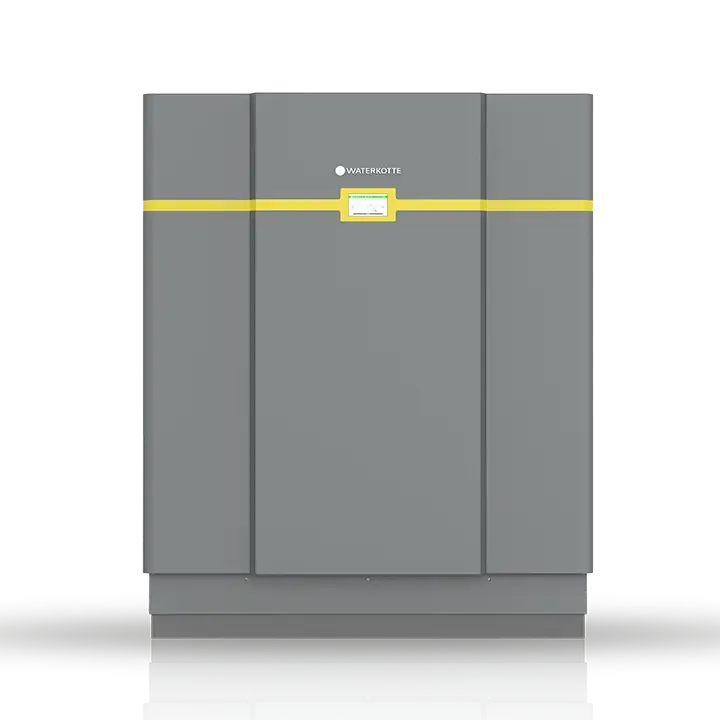

Industrial Line EcoTouch 5240T

The ET 5240T impresses with a power range of 111–299 kW and is ideal for buildings with high heating requirements. Tandem scroll compressors enable demand-based power control in two stages. Airborne sound insulation and a special base frame ensure quiet operation. Control is convenient via touch display, WebInterface, or mobile via the EasyCon app—for maximum efficiency and ease of use.

  • Advantage icon
    Low operating costs thanks to high COP values
  • Advantage icon
    Power adjustment via tandem compressors
  • Advantage icon
    Innovative operating software
  • Advantage icon
    Display of current COP values
  • Advantage icon
    Housing in anthracite with robust powder coating

Highest performance values

With an enormous output range of 111 - 299 kW, the ET 5240T series is ideal for use in buildings with high heating requirements. The output range is covered by the various sizes.

Flexible output control included

The ET 5240T is equipped with tandem scroll compressors. The intelligent EasyCon control software provides the output as required in two output stages, 50% and 100%.

Maximum efficiency with minimal noise emissions

The interior of the housing is supplemented by reliable airborne sound insulation. This keeps operating noise to a minimum. The L-shaped base frame minimizes the transmission of structure-borne noise – efficiency you can't hear.

Innovative ease of use

The high-quality features include a touch display, WebInterface, and the innovative EasyCon software. The EasyCon Mobile app makes remote control and monitoring of the heat pump extremely convenient.

Item number
ET145501TAD-1
Dimensions
1130 x 1366 x 1076
COP W10/W35
5.62
Area of application
New build, Refit
Limits of use
B-5/W59; B0/W60; B5/W64; W10/W64
Energy efficiency class of the composite system, ground
A+++
Energy efficiency class of the composite system, ground water
A+++
Functions
Hot water, Cooling, Heating
Refrigerant
R410A
Power output B0/W35
111.1 kW
Power output W10/W35
146.4 kW
Maximum flow temperature, geothermal energy
64 ° C
Heat source
Ground source
Space heating energy efficiency, ground
A+++
Space heating energy efficiency, ground water
A+++
Hot water tank
External, Optional
