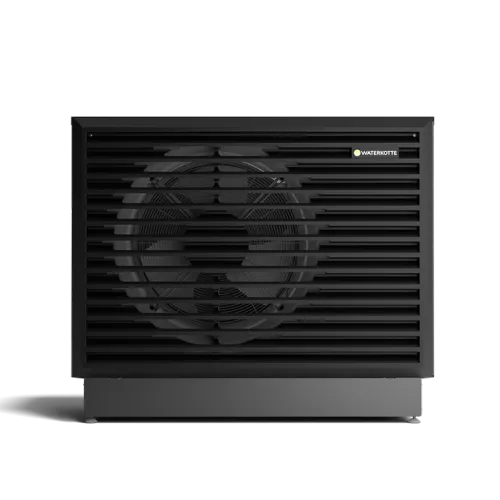

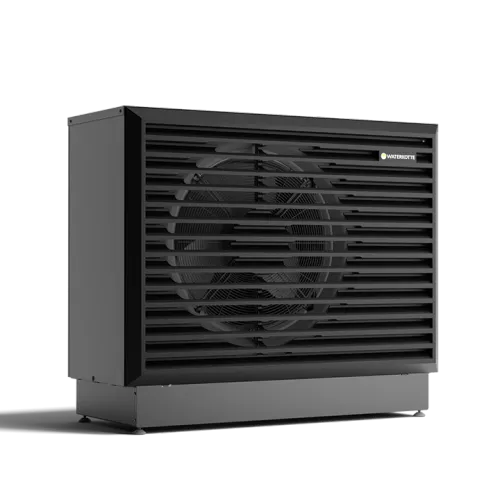

EcoTouch Air Bloc

The high-end air-to-water heat pump EcoTouch Air Bloc offers outstanding efficiency for new buildings and renovation projects with flow temperatures of up to 75 degrees. It combines heating, cooling and domestic hot water preparation in a single compact system. With a capacity range of 5 to 16 kW, it optimally covers all areas of application. The natural refrigerant R290 not only ensures sustainability, but also high efficiency. Users benefit from the future-proof model, which offers an environmentally friendly and economical solution for modern living spaces.

  • Advantage icon
    Environmentally friendly, sustainable refrigerant R290 with a very low global warming potential
  • Advantage icon
    Outstanding operational reliability thanks to innovative design incl. 6 kW heating rod
  • Advantage icon
    Simple and safe installation without refrigeration certificate
  • Advantage icon
    Low operating costs thanks to COP values of up to 5.0
  • Advantage icon
    Extremely low noise emissions

EcoTouch Air Bloc: environmentally friendly heat pump

The EcoTouch Air Bloc air/water heat pump is part of a new generation of heat pumps. With the sustainable refrigerant R290, which has a particularly low GWP, this series is environmentally friendly and sustainable. This innovative technology promotes efficient energy use and minimizes the ecological footprint.

Ideal for new construction and renovation

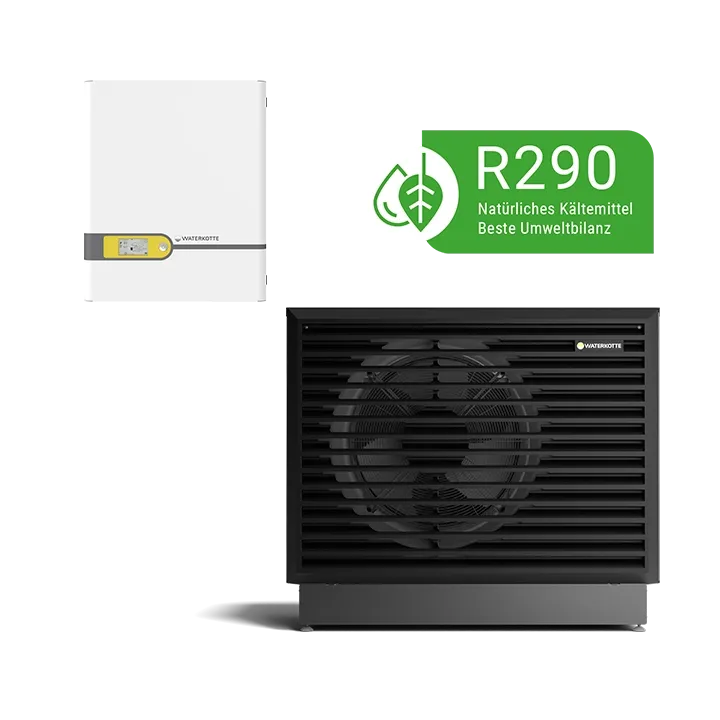

The EcoTouch Air Bloc enables efficient heating, cooling and domestic hot water preparation. The optional EcoStock domestic hot water cylinder completes the system. Thanks to high flow temperatures of up to 75°C, the heat pump is suitable for both new construction and renovation projects and impresses with its compact design.

Energy efficiency thanks to inverter-controlled compressor

The EcoTouch Air Bloc impresses with its inverter-controlled compressor, which offers maximum energy efficiency. The stepless power adjustment makes it possible to always optimally adjust operation to the current demand. This saves you energy costs and provides you with reliable heating output.

Item number
ETAB016707G
Dimensions of outdoor unit
1409 x 1195 x 641
Dimensions of indoor unit
550 x 650 x 200
COP A7/W35
4.9
Area of application
New build, Refit
Limits of use
A-20/W60; A0/W75 ; A40/W75
Energy efficiency class of the composite system 35 °C / 55 °C
A+++/A+++
Functions
Hot water, Cooling, Heating
Refrigerant
R290
Nominal cooling capacity (A35/W18)
8,7
Heat source
Air
Sound power level as per ErP (outdoor unit)
54 dB(A)
Sound pressure level night mode (outdoor unit, at a distance of 3 metres)
59 dB(A)
SCOP 35 °C / 55 °C (EN14825)
5,3 / 4,1
Hot water tank
External, Optional
