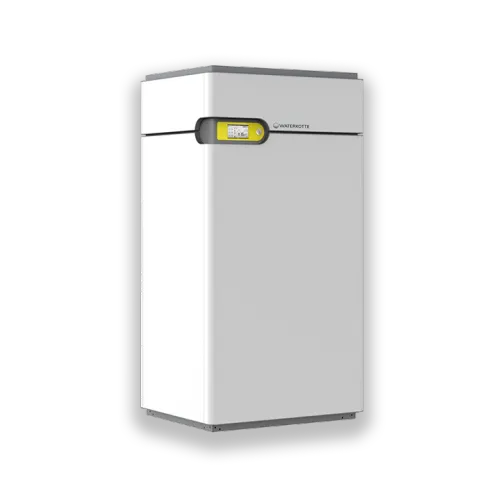

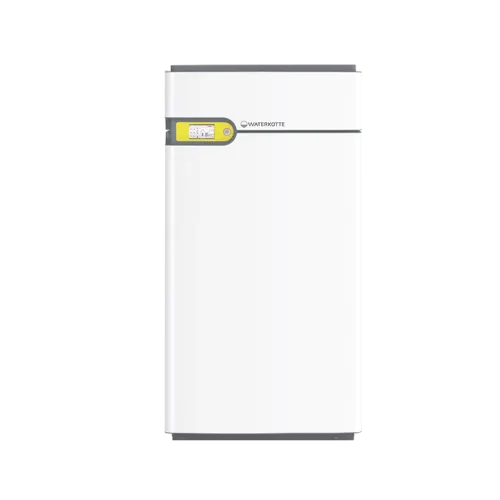

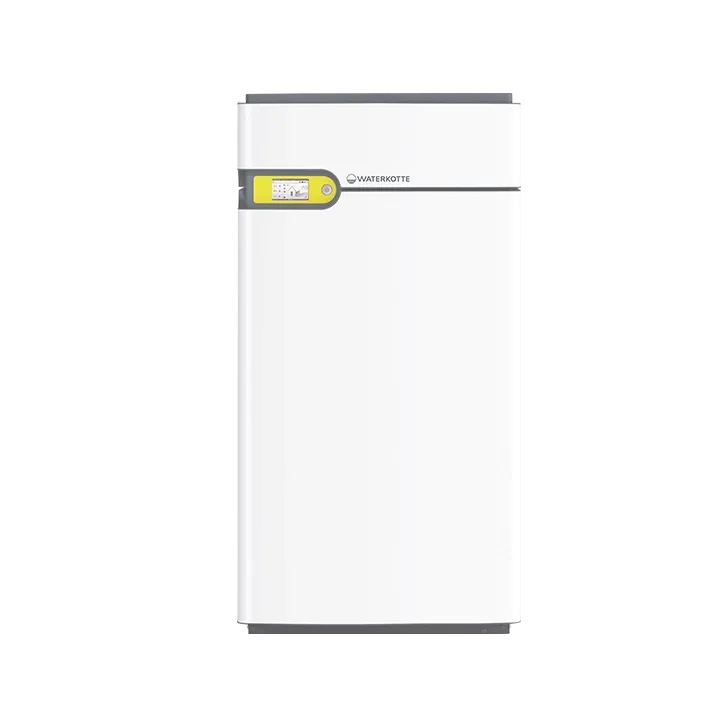

Industrial Line EcoTouch 5050T
The EcoTouch 5050T is a powerful compact heating center with separate domestic hot water heating. With an output range of 20 to 56 kW, it is ideal for multi-family homes and smaller commercial properties. Two fully hermetic scroll compressors enable output to be adjusted as needed. Up to eight units can be combined using the integrated cascade control. A touch display, web interface, and app ensure maximum ease of use.
Industrially usable geothermal heat pump- Color 4.3-inch touch display
- Low operating costs thanks to high COP values
- Power adjustment via tandem compressor
- Display of current COP values
Powerful and versatile
The EcoTouch 5050T is a compact heating center with separate domestic hot water heating. Its output range of 20–56 kW is ideal for use in multi-family homes and small commercial properties.
Output as needed
Two fully hermetic scroll compressors allow for individual and demand-based power adjustment. The variable operation of the compressors allows for a 50% reduction in rated output.

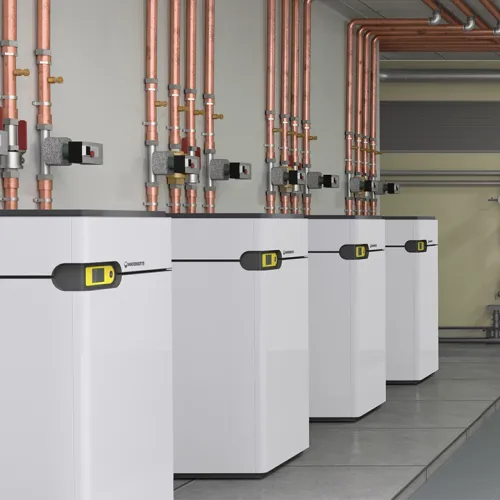

Cascade control included
With the integrated WWPR 2 heat pump control, 8 heat pumps can be connected in parallel.
Without additional control, the master pump controls the demand-based operation of the other units.
Maximum ease of use
The high-quality equipment includes a touch display, WebInterface, and EasyCon software. With the EasyCon Mobile app, remote monitoring via smartphone, tablet, or PC is easy and extremely convenient.
